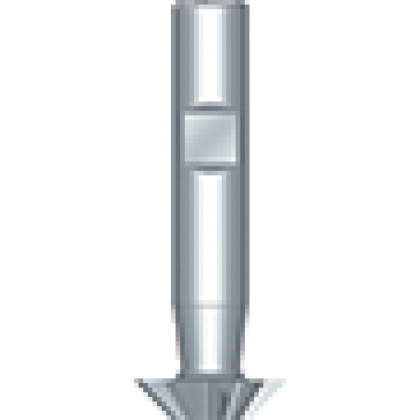

Angular face milling cutter HSS-E, DORMER - C831

Angular face milling cutter HSS-E, DORMER - C831

Angular face milling cutter HSS-E, DORMER - C831

star

star

0 Reviews Add rating

from

€112.75

DIN 1833D, 45° and 60°, type N.

Art. No	Variant	Ø	Zähnezahl	Gesamtlänge	Schaft Ø	Schneidenbreite	Winkel		In stock	Price
5112150000050	Angular face milling cutter HSS-E, DORMER - C831 12	12 mm	10	54 mm	10 mm	3,5 mm	45°		Kamp-Lintfort Steinhausen Ludwigsburg Mondsee	Loading... €112.75 per piece	favorite Loading... compare_arrows Loading... min.: 0 info
5112150000100	Angular face milling cutter HSS-E, DORMER - C831 16	16 mm	10	60 mm	10 mm	4 mm	45°		Kamp-Lintfort Steinhausen Ludwigsburg Mondsee	Loading... €113.00 per piece	favorite Loading... compare_arrows Loading... min.: 0 info
5112150000200	Angular face milling cutter HSS-E, DORMER - C831 20	20 mm	10	63 mm	10 mm	5 mm	45°		Kamp-Lintfort Steinhausen Ludwigsburg Mondsee	Loading... €144.90 per piece	favorite Loading... compare_arrows Loading... min.: 0 info
5112150000300	Angular face milling cutter HSS-E, DORMER - C831 25	25 mm	10	67 mm	10 mm	6,3 mm	45°		Kamp-Lintfort Steinhausen Ludwigsburg Mondsee	Loading... €177.65 per piece	favorite Loading... compare_arrows Loading... min.: 0 info
5112150000400	Angular end mill HSS-E, DORMER - C831 32	32 mm	12	71 mm	12 mm	8 mm	45°		Kamp-Lintfort Steinhausen Ludwigsburg Mondsee	Loading... €252.00 per piece	favorite Loading... compare_arrows Loading... min.: 0 info
5112150000450	Angular face milling cutter HSS-E, DORMER - C831 12	12 mm	10	54 mm	10 mm	5 mm	60°		Kamp-Lintfort Steinhausen Ludwigsburg Mondsee	Loading... €113.15 per piece	favorite Loading... compare_arrows Loading... min.: 0 info
5112150000500	Angular face milling cutter HSS-E, DORMER - C831 16	16 mm	10	60 mm	10 mm	6,3 mm	60°		Kamp-Lintfort Steinhausen Ludwigsburg Mondsee	Loading... €113.25 per piece	favorite Loading... compare_arrows Loading... min.: 0 info
5112150000600	Angular face milling cutter HSS-E, DORMER - C831 20	20 mm	10	63 mm	10 mm	8 mm	60°		Kamp-Lintfort Steinhausen Ludwigsburg Mondsee	Loading... €144.90 per piece	favorite Loading... compare_arrows Loading... min.: 0 info
5112150000700	Angular face milling cutter HSS-E, DORMER - C831 25	25 mm	10	67 mm	10 mm	10 mm	60°		Kamp-Lintfort Steinhausen Ludwigsburg Mondsee	Loading... €177.65 per piece	favorite Loading... compare_arrows Loading... min.: 0 info
5112150000800	Angular end mill HSS-E, DORMER - C831 32	32 mm	12	71 mm	12 mm	12,5 mm	60°		Kamp-Lintfort Steinhausen Ludwigsburg Mondsee	Loading... €252.00 per piece	favorite Loading... compare_arrows Loading... min.: 0 info

Material	HSS-E
Surface	uncoated
Application	for milling dovetail grooves
AMG very well suited	1.1, 1.2, 1.3, 1.4, 1.5, 1.6, 2.1, 2.2, 2.3, 3.1, 3.2, 3.3, 3.4, 4.1, 4.2, 4.3, 5.1, 5.2, 5.3, 6.1, 6.2, 6.3, 6.4, 7.1, 7.2, 7.3, 7.4, 8.1, 10.1
Shank	DIN 1835 B, straight shank with lateral driving face, helix angle straight fluted, right-hand cutting
Cutting Tolerance	js 16
