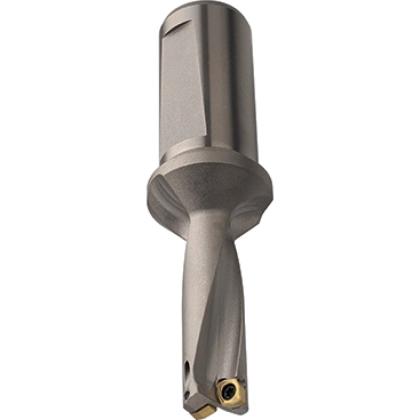

Insert drill, MITSUBISHI - TAFL / 4xD

star

from

€404.60

Cylindrical shank with clamping surface, internal cooling for optimized cooling, large clamping grooves allow safe chip flow, thus high and safe productivity. For stationary and rotating use. Particularly economical through the use of inserts with 4 insertable cutting edges. Drilling on round and sloping surfaces possible.

Art. No	Variant	Typ	Ø	Spirallänge	Gesamtlänge	Anzahl WSP	WSP Typ	Schaft Ø	In stock	Price
5103235000005	Insert drill, MITSUBISHI - TAFL / 4xD 1200	TAFL 1200	12 mm	53 mm	106 mm	2	GCMT040204-U	F20 mm	Kamp-Lintfort Steinhausen Ludwigsburg Mondsee	Loading... €404.60 per piece	favorite Loading... compare_arrows Loading... min.: 0 info
5103235000010	Insert drill, MITSUBISHI - TAFL / 4xD 1250	TAFL 1250	12.5 mm	53 mm	106 mm	2	GCMT040204-U	F20 mm	Kamp-Lintfort Steinhausen Ludwigsburg Mondsee	Loading... €404.60 per piece	favorite Loading... compare_arrows Loading... min.: 0 info
5103235000015	Insert drill, MITSUBISHI - TAFL / 4xD 1300	TAFL 1300	13 mm	57 mm	110 mm	2	GCMT040204-U	F20 mm	Kamp-Lintfort Steinhausen Ludwigsburg Mondsee	Loading... €404.60 per piece	favorite Loading... compare_arrows Loading... min.: 0 info
5103235000020	Insert drill, MITSUBISHI - TAFL / 4xD 1350	TAFL 1350	13.5 mm	57 mm	110 mm	2	GCMT040204-U	F20 mm	Kamp-Lintfort Steinhausen Ludwigsburg Mondsee	Loading... €404.60 per piece	favorite Loading... compare_arrows Loading... min.: 0 info
5103235000030	Insert drill, MITSUBISHI - TAFL / 4xD 1400	TAFL 1400	14 mm	61 mm	114 mm	2	GCMT040204-U	F20 mm	Kamp-Lintfort Steinhausen Ludwigsburg Mondsee	Loading... €404.60 per piece	favorite Loading... compare_arrows Loading... min.: 0 info
5103235000040	Insert drill, MITSUBISHI - TAFL / 4xD 1450	TAFL 1450	14.5 mm	61 mm	114 mm	2	GCMT040204-U	F20 mm	Kamp-Lintfort Steinhausen Ludwigsburg Mondsee	Loading... €404.60 per piece	favorite Loading... compare_arrows Loading... min.: 0 info
5103235000045	Insert drill, MITSUBISHI - TAFL / 4xD 1500	TAFL 1500	15 mm	65 mm	118 mm	2	GPMT060204-U	F20 mm	Kamp-Lintfort Steinhausen Ludwigsburg Mondsee	Loading... €404.60 per piece	favorite Loading... compare_arrows Loading... min.: 0 info
5103235000050	Insert drill, MITSUBISHI - TAFL / 4xD 1550	TAFL 1550	15.5 mm	65 mm	118 mm	2	GPMT060204-U	F20 mm	Kamp-Lintfort Steinhausen Ludwigsburg Mondsee	Loading... €404.60 per piece	favorite Loading... compare_arrows Loading... min.: 0 info
5103235000100	Insert drill, MITSUBISHI - TAFL / 4xD 1600	TAFL 1600	16 mm	70 mm	139 mm	2	GPMT060204-U	F25 mm	Kamp-Lintfort Steinhausen Ludwigsburg Mondsee	Loading... €427.20 per piece	favorite Loading... compare_arrows Loading... min.: 0 info
5103235000200	Insert drill, MITSUBISHI - TAFL / 4xD 1700	TAFL 1700	17 mm	75 mm	143 mm	2	GPMT060204-U	F25 mm	Kamp-Lintfort Steinhausen Ludwigsburg Mondsee	Loading... €427.20 per piece	favorite Loading... compare_arrows Loading... min.: 0 info
5103235000300	Insert drill, MITSUBISHI - TAFL / 4xD 1750	TAFL 1750	17.5 mm	75 mm	143 mm	2	GPMT060204-U	F25 mm	Kamp-Lintfort Steinhausen Ludwigsburg Mondsee	Loading... €427.20 per piece	favorite Loading... compare_arrows Loading... min.: 0 info
5103235000400	Insert drill, MITSUBISHI - TAFL / 4xD 1800	TAFL 1800	18 mm	79 mm	147 mm	2	GPMT070204-U	F25 mm	Kamp-Lintfort Steinhausen Ludwigsburg Mondsee	Loading... €427.20 per piece	favorite Loading... compare_arrows Loading... min.: 0 info
5103235000500	Insert drill, MITSUBISHI - TAFL / 4xD 1900	TAFL 1900	19 mm	84 mm	151 mm	2	GPMT070204-U	F25 mm	Kamp-Lintfort Steinhausen Ludwigsburg Mondsee	Loading... €427.20 per piece	favorite Loading... compare_arrows Loading... min.: 0 info
5103235000600	Insert drill, MITSUBISHI - TAFL / 4xD 2000	TAFL 2000	20 mm	88 mm	155 mm	2	GPMT070204-U	F25 mm	Kamp-Lintfort Steinhausen Ludwigsburg Mondsee	Loading... €427.20 per piece	favorite Loading... compare_arrows Loading... min.: 0 info
5103235000700	Insert drill, MITSUBISHI - TAFL / 4xD 2100	TAFL 2100	21 mm	92 mm	159 mm	2	GPMT070204-U	F25 mm	Kamp-Lintfort Steinhausen Ludwigsburg Mondsee	Loading... €451.00 per piece	favorite Loading... compare_arrows Loading... min.: 0 info
5103235000800	Insert drill, MITSUBISHI - TAFL / 4xD 2200	TAFL 2200	22 mm	97 mm	163 mm	2	GPMT070204-U	F25 mm	Kamp-Lintfort Steinhausen Ludwigsburg Mondsee	Loading... €451.00 per piece	favorite Loading... compare_arrows Loading... min.: 0 info
5103235000900	Insert drill, MITSUBISHI - TAFL / 4xD 2300	TAFL 2300	23 mm	101 mm	167 mm	2	GPMT090304-U	F25 mm	Kamp-Lintfort Steinhausen Ludwigsburg Mondsee	Loading... €451.00 per piece	favorite Loading... compare_arrows Loading... min.: 0 info
5103235001000	Insert drill, MITSUBISHI - TAFL / 4xD 2350	TAFL 2350	23.5 mm	101 mm	167 mm	2	GPMT090304-U	F25 mm	Kamp-Lintfort Steinhausen Ludwigsburg Mondsee	Loading... €451.00 per piece	favorite Loading... compare_arrows Loading... min.: 0 info
5103235001100	Insert drill, MITSUBISHI - TAFL / 4xD 2400	TAFL 2400	24 mm	106 mm	171 mm	2	GPMT090304-U	F25 mm	Kamp-Lintfort Steinhausen Ludwigsburg Mondsee	Loading... €451.00 per piece	favorite Loading... compare_arrows Loading... min.: 0 info
5103235001200	Insert drill, MITSUBISHI - TAFL / 4xD 2500	TAFL 2500	25 mm	110 mm	180 mm	2	GPMT090304-U	F32 mm	Kamp-Lintfort Steinhausen Ludwigsburg Mondsee	Loading... €451.00 per piece	favorite Loading... compare_arrows Loading... min.: 0 info
5103235001400	Insert drill, MITSUBISHI - TAFL / 4xD 2600	TAFL 2600	26 mm	114 mm	184 mm	2	GPMT090304-U	F32 mm	Kamp-Lintfort Steinhausen Ludwigsburg Mondsee	Loading... €492.70 per piece	favorite Loading... compare_arrows Loading... min.: 0 info
5103235001500	Insert drill, MITSUBISHI - TAFL / 4xD 2650	TAFL 2650	26.5 mm	114 mm	184 mm	2	GPMT090304-U	F32 mm	Kamp-Lintfort Steinhausen Ludwigsburg Mondsee	Loading... €492.70 per piece	favorite Loading... compare_arrows Loading... min.: 0 info
5103235001600	Insert drill, MITSUBISHI - TAFL / 4xD 2700	TAFL 2700	27 mm	119 mm	188 mm	2	GPMT090304-U	F32 mm	Kamp-Lintfort Steinhausen Ludwigsburg Mondsee	Loading... €492.70 per piece	favorite Loading... compare_arrows Loading... min.: 0 info
5103235001700	Insert drill, MITSUBISHI - TAFL / 4xD 2800	TAFL 2800	28 mm	123 mm	192 mm	2	GPMT11T308-U	F32 mm	Kamp-Lintfort Steinhausen Ludwigsburg Mondsee	Loading... €492.70 per piece	favorite Loading... compare_arrows Loading... min.: 0 info
5103235001800	Insert drill, MITSUBISHI - TAFL / 4xD 2850	TAFL 2850	28.5 mm	123 mm	202 mm	2	GPMT11T308-U	F40 mm	Kamp-Lintfort Steinhausen Ludwigsburg Mondsee	Loading... €492.70 per piece	favorite Loading... compare_arrows Loading... min.: 0 info
5103235001900	Insert drill, MITSUBISHI - TAFL / 4xD 2900	TAFL 2900	29 mm	128 mm	196 mm	2	GPMT11T308-U	F32 mm	Kamp-Lintfort Steinhausen Ludwigsburg Mondsee	Loading... €492.70 per piece	favorite Loading... compare_arrows Loading... min.: 0 info
5103235002000	Insert drill, MITSUBISHI - TAFL / 4xD 3000	TAFL 3000	30 mm	132 mm	205 mm	2	GPMT11T308-U	F32 mm	Kamp-Lintfort Steinhausen Ludwigsburg Mondsee	Loading... €492.70 per piece	favorite Loading... compare_arrows Loading... min.: 0 info
5103235002100	Insert drill, MITSUBISHI - TAFL / 4xD 3000	TAFL 3000	30 mm	132 mm	215 mm	2	GPMT11T308-U	F40 mm	Kamp-Lintfort Steinhausen Ludwigsburg Mondsee	Loading... €492.70 per piece	favorite Loading... compare_arrows Loading... min.: 0 info
5103235002200	Insert drill, MITSUBISHI - TAFL / 4xD 3100	TAFL 3100	31 mm	135 mm	209 mm	2	GPMT11T308-U	F32 mm	Kamp-Lintfort Steinhausen Ludwigsburg Mondsee	Loading... €556.90 per piece	favorite Loading... compare_arrows Loading... min.: 0 info
5103235002300	Insert drill, MITSUBISHI - TAFL / 4xD 3100	TAFL 3100	31 mm	136 mm	219 mm	2	GPMT11T308-U	F40 mm	Kamp-Lintfort Steinhausen Ludwigsburg Mondsee	Loading... €556.90 per piece	favorite Loading... compare_arrows Loading... min.: 0 info
5103235002400	Insert drill, MITSUBISHI - TAFL / 4xD 3200	TAFL 3200	32 mm	141 mm	213 mm	2	GPMT11T308-U	F32 mm	Kamp-Lintfort Steinhausen Ludwigsburg Mondsee	Loading... €556.90 per piece	favorite Loading... compare_arrows Loading... min.: 0 info
5103235002500	Insert drill, MITSUBISHI - TAFL / 4xD 3200	TAFL 3200	32 mm	141 mm	223 mm	2	GPMT11T308-U	F40 mm	Kamp-Lintfort Steinhausen Ludwigsburg Mondsee	Loading... €556.90 per piece	favorite Loading... compare_arrows Loading... min.: 0 info
5103235002600	Insert drill, MITSUBISHI - TAFL / 4xD 3300	TAFL 3300	33 mm	145 mm	217 mm	2	GPMT11T308-U	F32 mm	Kamp-Lintfort Steinhausen Ludwigsburg Mondsee	Loading... €556.90 per piece	favorite Loading... compare_arrows Loading... min.: 0 info
5103235002700	Insert drill, MITSUBISHI - TAFL / 4xD 3300	TAFL 3300	33 mm	145 mm	227 mm	2	GPMT11T308-U	F40 mm	Kamp-Lintfort Steinhausen Ludwigsburg Mondsee	Loading... €556.90 per piece	favorite Loading... compare_arrows Loading... min.: 0 info
5103235002800	Insert drill, MITSUBISHI - TAFL / 4xD 3400	TAFL 3400	34 mm	150 mm	231 mm	2	GPMT11T308-U	F32 mm	Kamp-Lintfort Steinhausen Ludwigsburg Mondsee	Loading... €556.90 per piece	favorite Loading... compare_arrows Loading... min.: 0 info
5103235002900	Insert drill, MITSUBISHI - TAFL / 4xD 3400	TAFL 3400	34 mm	150 mm	231 mm	2	GPMT11T308-U	F40 mm	Kamp-Lintfort Steinhausen Ludwigsburg Mondsee	Loading... €556.90 per piece	favorite Loading... compare_arrows Loading... min.: 0 info
5103235003000	Insert drill, MITSUBISHI - TAFL / 4xD 3500	TAFL 3500	35 mm	154 mm	235 mm	2	GPMT140408-U	F32 mm	Kamp-Lintfort Steinhausen Ludwigsburg Mondsee	Loading... €556.90 per piece	favorite Loading... compare_arrows Loading... min.: 0 info
5103235003100	Insert drill, MITSUBISHI - TAFL / 4xD 3500	TAFL 3500	35 mm	154 mm	235 mm	2	GPMT140408-U	F40 mm	Kamp-Lintfort Steinhausen Ludwigsburg Mondsee	Loading... €556.90 per piece	favorite Loading... compare_arrows Loading... min.: 0 info
5103235003200	Insert drill, MITSUBISHI - TAFL / 4xD 3600	TAFL 3600	36 mm	158 mm	229 mm	2	GPMT140408-U	F32 mm	Kamp-Lintfort Steinhausen Ludwigsburg Mondsee	Loading... €556.90 per piece	favorite Loading... compare_arrows Loading... min.: 0 info
5103235003300	Insert drill, MITSUBISHI - TAFL / 4xD 3600	TAFL 3600	36 mm	158 mm	239 mm	2	GPMT140408-U	F40 mm	Kamp-Lintfort Steinhausen Ludwigsburg Mondsee	Loading... €556.90 per piece	favorite Loading... compare_arrows Loading... min.: 0 info
5103235003400	Insert drill, MITSUBISHI - TAFL / 4xD 3700	TAFL 3700	37 mm	163 mm	233 mm	2	GPMT140408-U	F32 mm	Kamp-Lintfort Steinhausen Ludwigsburg Mondsee	Loading... €602.10 per piece	favorite Loading... compare_arrows Loading... min.: 0 info
5103235003500	Insert drill, MITSUBISHI - TAFL / 4xD 3700	TAFL 3700	37 mm	163 mm	243 mm	2	GPMT140408-U	F40 mm	Kamp-Lintfort Steinhausen Ludwigsburg Mondsee	Loading... €602.10 per piece	favorite Loading... compare_arrows Loading... min.: 0 info
5103235003600	Insert drill, MITSUBISHI - TAFL / 4xD 3750	TAFL 3750	37.5 mm	163 mm	233 mm	2	GPMT140408-U	F32 mm	Kamp-Lintfort Steinhausen Ludwigsburg Mondsee	Loading... €602.10 per piece	favorite Loading... compare_arrows Loading... min.: 0 info
5103235003700	Insert drill, MITSUBISHI - TAFL / 4xD 3750	TAFL 3750	37.5 mm	163 mm	243 mm	2	GPMT140408-U	F40 mm	Kamp-Lintfort Steinhausen Ludwigsburg Mondsee	Loading... €602.10 per piece	favorite Loading... compare_arrows Loading... min.: 0 info
5103235003800	Insert drill, MITSUBISHI - TAFL / 4xD 3800	TAFL 3800	38 mm	167 mm	247 mm	2	GPMT140408-U	F32 mm	Kamp-Lintfort Steinhausen Ludwigsburg Mondsee	Loading... €602.10 per piece	favorite Loading... compare_arrows Loading... min.: 0 info
5103235003900	Insert drill, MITSUBISHI - TAFL / 4xD 3800	TAFL 3800	38 mm	167 mm	247 mm	2	GPMT140408-U	F40 mm	Kamp-Lintfort Steinhausen Ludwigsburg Mondsee	Loading... €602.10 per piece	favorite Loading... compare_arrows Loading... min.: 0 info
5103235004000	Insert drill, MITSUBISHI - TAFL / 4xD 3900	TAFL 3900	39 mm	172 mm	251 mm	2	GPMT140408-U	F32 mm	Kamp-Lintfort Steinhausen Ludwigsburg Mondsee	Loading... €602.10 per piece	favorite Loading... compare_arrows Loading... min.: 0 info
5103235004100	Insert drill, MITSUBISHI - TAFL / 4xD 3900	TAFL 3900	39 mm	172 mm	251 mm	2	GPMT140408-U	F40 mm	Kamp-Lintfort Steinhausen Ludwigsburg Mondsee	Loading... €602.10 per piece	favorite Loading... compare_arrows Loading... min.: 0 info
5103235004200	Insert drill, MITSUBISHI - TAFL / 4xD 4000	TAFL 4000	40 mm	176 mm	245 mm	2	GPMT140408-U	F32 mm	Kamp-Lintfort Steinhausen Ludwigsburg Mondsee	Loading... €602.10 per piece	favorite Loading... compare_arrows Loading... min.: 0 info
5103235004300	Insert drill, MITSUBISHI - TAFL / 4xD 4000	TAFL 4000	40 mm	176 mm	255 mm	2	GPMT140408-U	F40 mm	Kamp-Lintfort Steinhausen Ludwigsburg Mondsee	Loading... €602.10 per piece	favorite Loading... compare_arrows Loading... min.: 0 info
5103235004400	Insert drill, MITSUBISHI - TAFL / 4xD 4100	TAFL 4100	41 mm	180 mm	259 mm	2	GPMT140408-U	F40 mm	Kamp-Lintfort Steinhausen Ludwigsburg Mondsee	Loading... €602.10 per piece	favorite Loading... compare_arrows Loading... min.: 0 info
5103235004500	Insert drill, MITSUBISHI - TAFL / 4xD 4200	TAFL 4200	42 mm	185 mm	263 mm	2	GPMT140408-U	F40 mm	Kamp-Lintfort Steinhausen Ludwigsburg Mondsee	Loading... €648.60 per piece	favorite Loading... compare_arrows Loading... min.: 0 info
5103235004600	Insert drill, MITSUBISHI - TAFL / 4xD 4300	TAFL 4300	43 mm	189 mm	267 mm	2	GPMT140408-U	F40 mm	Kamp-Lintfort Steinhausen Ludwigsburg Mondsee	Loading... €648.60 per piece	favorite Loading... compare_arrows Loading... min.: 0 info
5103235004700	Insert drill, MITSUBISHI - TAFL / 4xD 4400	TAFL 4400	44 mm	194 mm	271 mm	2	GPMT140408-U	F40 mm	Kamp-Lintfort Steinhausen Ludwigsburg Mondsee	Loading... €648.60 per piece	favorite Loading... compare_arrows Loading... min.: 0 info
5103235004800	Insert drill, MITSUBISHI - TAFL / 4xD 4500	TAFL 4500	45 mm	198 mm	275 mm	2	GPMT140408-U	F40 mm	Kamp-Lintfort Steinhausen Ludwigsburg Mondsee	Loading... €648.60 per piece	favorite Loading... compare_arrows Loading... min.: 0 info
5103235004900	Insert drill, MITSUBISHI - TAFL / 4xD 4600	TAFL 4600	46 mm	202 mm	279 mm	2	GPMT140408-U	F40 mm	Kamp-Lintfort Steinhausen Ludwigsburg Mondsee	Loading... €648.60 per piece	favorite Loading... compare_arrows Loading... min.: 0 info
5103235005000	Insert drill, MITSUBISHI - TAFL / 4xD 4700	TAFL 4700	47 mm	207 mm	283 mm	2	GPMT140408-U	F40 mm	Kamp-Lintfort Steinhausen Ludwigsburg Mondsee	Loading... €648.60 per piece	favorite Loading... compare_arrows Loading... min.: 0 info
5103235005100	Insert drill, MITSUBISHI - TAFL / 4xD 4800	TAFL 4800	48 mm	211 mm	287 mm	2	GPMT140408-U	F40 mm	Kamp-Lintfort Steinhausen Ludwigsburg Mondsee	Loading... €648.60 per piece	favorite Loading... compare_arrows Loading... min.: 0 info
5103235005200	Insert drill, MITSUBISHI - TAFL / 4xD 4900	TAFL 4900	49 mm	216 mm	296 mm	4	GPMT090304-U	F40 mm	Kamp-Lintfort Steinhausen Ludwigsburg Mondsee	Loading... €759.20 per piece	favorite Loading... compare_arrows Loading... min.: 0 info
5103235005300	Insert drill, MITSUBISHI - TAFL / 4xD 5000	TAFL 5000	50 mm	220 mm	300 mm	4	GPMT090304-U	F40 mm	Kamp-Lintfort Steinhausen Ludwigsburg Mondsee	Loading... €759.20 per piece	favorite Loading... compare_arrows Loading... min.: 0 info
5103235005400	Insert drill, MITSUBISHI - TAFL / 4xD 5100	TAFL 5100	51 mm	224 mm	304 mm	4	GPMT090304-U	F40 mm	Kamp-Lintfort Steinhausen Ludwigsburg Mondsee	Loading... €759.20 per piece	favorite Loading... compare_arrows Loading... min.: 0 info
5103235005500	Insert drill, MITSUBISHI - TAFL / 4xD 5200	TAFL 5200	52 mm	229 mm	308 mm	4	GPMT090304-U	F40 mm	Kamp-Lintfort Steinhausen Ludwigsburg Mondsee	Loading... €759.20 per piece	favorite Loading... compare_arrows Loading... min.: 0 info
5103235005600	Insert drill, MITSUBISHI - TAFL / 4xD 5300	TAFL 5300	53 mm	233 mm	312 mm	4	GPMT090304-U	F40 mm	Kamp-Lintfort Steinhausen Ludwigsburg Mondsee	Loading... €759.20 per piece	favorite Loading... compare_arrows Loading... min.: 0 info
5103235005700	Insert drill, MITSUBISHI - TAFL / 4xD 5400	TAFL 5400	54 mm	236 mm	316 mm	4	GPMT090304-U	F40 mm	Kamp-Lintfort Steinhausen Ludwigsburg Mondsee	Loading... €759.20 per piece	favorite Loading... compare_arrows Loading... min.: 0 info
5103235005800	Insert drill, MITSUBISHI - TAFL / 4xD 5500	TAFL 5500	55 mm	240 mm	320 mm	4	GPMT090304-U	F40 mm	Kamp-Lintfort Steinhausen Ludwigsburg Mondsee	Loading... €759.20 per piece	favorite Loading... compare_arrows Loading... min.: 0 info
5103235005900	Insert drill, MITSUBISHI - TAFL / 4xD 5600	TAFL 5600	56 mm	244 mm	32 mm	4	GPMT090304-U	F40 mm	Kamp-Lintfort Steinhausen Ludwigsburg Mondsee	Loading... €759.20 per piece	favorite Loading... compare_arrows Loading... min.: 0 info

print Print

Application	for carbon steels, stainless steels, alloyed steels and cast iron
Drilling depth	4xD

Insert drill, MITSUBISHI - TAFL / 4xD
